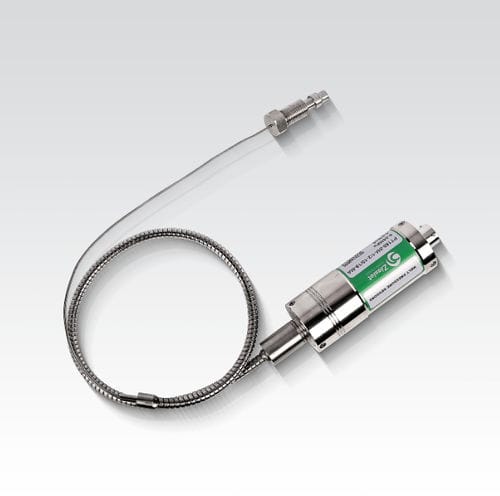

Strain gauge pressure transmitter PT180
analog24 Vdcthreaded

Strain gauge pressure transmitter - PT180 - Zias(Shanghai) IOT Technology Co.,Ltd - analog / 24 Vdc / threaded
Strain gauge pressure transmitter - PT180 - Zias(Shanghai) IOT Technology Co.,Ltd - analog / 24 Vdc / threaded
Strain gauge pressure transmitter - PT180 - Zias(Shanghai) IOT Technology Co.,Ltd - analog / 24 Vdc / threaded - image - 2
Strain gauge pressure transmitter - PT180 - Zias(Shanghai) IOT Technology Co.,Ltd - analog / 24 Vdc / threaded - image - 3
Add to favorites
Compare this product


Characteristics

Technology
strain gauge
Output
analog
Supply voltage
24 Vdc
Mounting
threaded, cavity
Process connection
1/2" UNF
Protection level
IP65
Applications
for the food industry, melt
Other characteristics
precision, high-temperature
Pressure range

Max.: 200 MPa

Min.: 0 MPa

Precision

0.5 %

Process temperature

Max.: 400 °C
(752 °F)

Min.: -20 °C
(-4 °F)

Description

The capillary-exposed melt pressure transmitter is designed for narrow space application,the special diaphragm and highly antiabrasive coating of which enable it to work normally at high temperature of 400℃.It adopt standard threaded connection with 80% internal calibration and is characterized by high stability and long lifespan. Application Area Profile lines Compounders Sheet lines Pipe lines Food package Accumulator head Features Special diaphragm coating; Multiple signal outputs; Patented Product; 80% Internal calibration; suitable for narrow space application;
