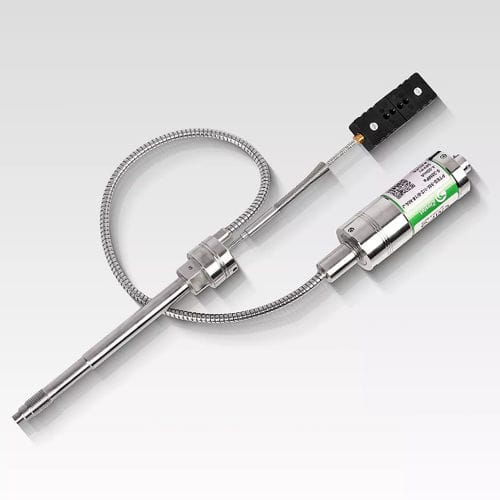

Membrane pressure transducer PTES

4-20 mAstainless steelplastic

Fully compatible with Dynisco, Gefran, GP50, Gentran ● The model PTE Series comes with thermocouple, it can measure the pressure and temperature at one point. ● It adopts special material and alloy elastic membrane to low down the temperature draft and improve accuracy. ● The zero & full span can be calibrated, with amplify signal be connected with PLC, and internal 80% calibration. ● It has the wide application in high-temp liquid pressure measurement and control such as Chemical & Fiber equipment, polyester equipment, etc. ● Rigid/Flexible Stem structure optional, flexible conduit and special diaphragm isolation; ● Good stability and repeatability. ● High accuracy and easy to install ● Stainless steel welding ● Excellent stability and repeatability Product Description EMPS PTE economic series is widely used in polymer industry requiring easy installation, good repeatability.Its various signal outputs such as mV/V, 0-10Vor 4-20 mA are able to be connected with many pressure display. This series can also be equipped with temperature measurement component like E,J, K thermocouple. PTE series transducer adopts standard -20 UNF thread.The EMPS series product technology is widely accepted by peers all over the world. Application Area Extrusion and polymer/Polyster processing Fiber Equipment Plastic and Rubber manufacturing equipment Food and medical processing Other melt pressure measurement and Control
