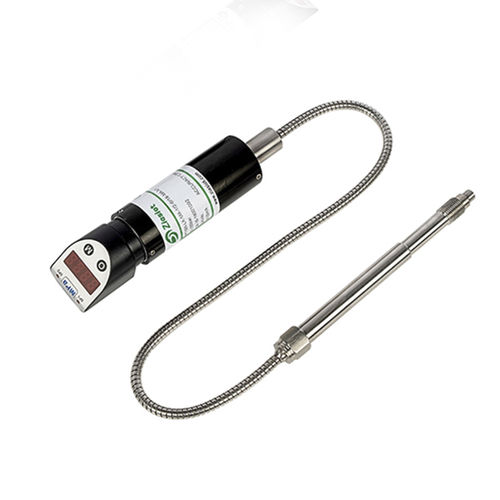

Relative pressure transducer PT125

strain gaugeanalogwireless

Melt pressure transmitter with digital display is designed to measure at high temperature in the injection molding industry and chemical fiber industry, special diaphrgam material and highly anti-abrasive coating of which enable it to work normally at high tem perature up to 400℃.This series adopts threaded connection and digital display with relay output availableis.This series is characterized by high stability and long lifespan. Features Wireless transmitter; Special coating of diaphragm; IP65 safety grade; Four digit display; Optional relay output; Intrinsically Safe type; Explosion-Proof structure with digital display; Patented Product. Application Chemical fiber industry Injection molding industry Technical Parameters Input Voltage 24VDC(12～36VDC) Bridge Resistance 350Ω Diaphragm Material 17-4PH E-Connection M12 aviation connector Pressure Unit MPa Mounting Torque 40N.m Max Overload Capacity 1.5 times rated pressure Measurement E,J,K type or Pt100
