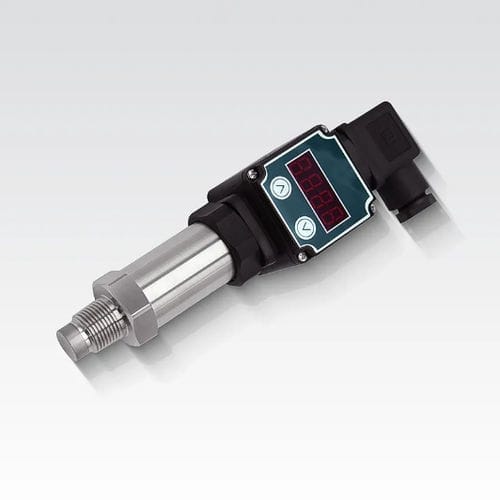

Absolute pressure transmitter PT216ASsiliconsensitive element4-20 mA
Add to favorites
Compare this product
Characteristics
- Pressure type
- absolute
- Technology
- silicon, sensitive element
- Output
- 4-20 mA, 2-wire
- Mounting
- flush diaphragm
- Material
- stainless steel
- Protection level
- IP67
- Applications
- for the food industry
- Other characteristics
- precision, with display, sanitary
- Pressure range
Max.: 400 bar
(5,801.51 psi)Min.: -1 bar
(-14.5 psi)- Precision
0.1 %, 0.25 %, 0.5 %
- Process temperature
Max.: 160 °C
(320 °F)Min.: -40 °C
(-40 °F)
Description
This series of products is a sanitary special pressure transmitter with diffused silicon pressure core as sensitive element and 316L stainless steel diaphragm isolation.This series of products has the characteristics of stainless steel welded structure, high precision, non-cavity corrugated flat film, wide measuring range and field display. Widely used in food, medicine and other health industries or fluid pressure measurement and control with particles.
Features
Cavitless corrugated flat film
A variety of housings are available
Multiple electrical connection options
Sanitary surface roughness Ra < 0.38 μm can be selected
Application Area
Food and beverage industry
Medical pharmaceutical industry
biotechnology
Pigment, spraying
Chemical industry and paper industry
