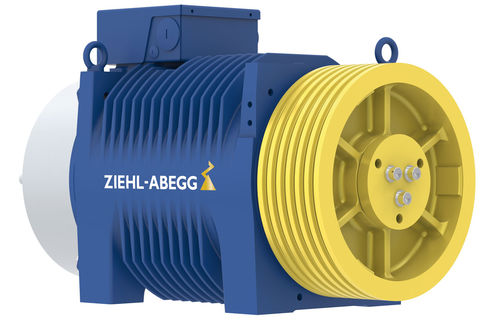

DC motor SM200
synchronous110 Vpermanent magnet

DC motor
DC motor
DC motor
Add to favorites
Compare this product


Characteristics

AC/DC
DC
Type
synchronous
Voltage
110 V
Configuration
permanent magnet, compact
Applications
for elevator, traction
Power

Max.: 18,800 W
(25.561 hp)

Min.: 2,500 W
(3.399 hp)

Torque

250 Nm, 330 Nm, 475 Nm, 600 Nm
(184.3905 ft.lb, 243.3955 ft.lb, 350.342 ft.lb, 442.5373 ft.lb)

Diameter

Max.: 500 mm
(19.69 in)

Min.: 160 mm
(6.3 in)

Description

ZAtop Properties & special features: Permanent magnet excited gearless drive for traction sheave cable elevators. Due to its compact design, the ZAtop is ideally suited for use in elevators with or without a machine room. The type-tested brake can be used as a safety device to prevent uncontrolled upwards cabin movement and unintended cabin movement from the landing. Drives in the ZAtop series provide for high energy efficiency and low noise levels when running. Applications and uses: Payload up to 6500 kg Speed up to 4.0 m/s Traction sheave diameter of 120 to 640 mm SM200 Payload: up to 1800 kg (2:1) Speed: up to 3.0 m/s Axle load: up to 3300 kg Installation width: 320 mm Traction sheave: 120 mm to 500 mm Optional: Mechanical brake airing, forced ventilation for increased on time
