DC motor SM225
synchronous400 Vpermanent magnet

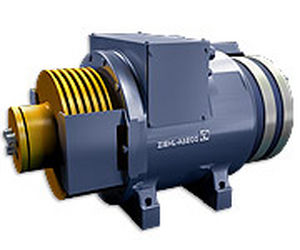

DC motor - SM225 - ZIEHL-ABEGG - synchronous / 400 V / permanent magnet
DC motor - SM225 - ZIEHL-ABEGG - synchronous / 400 V / permanent magnet
DC motor - SM225 - ZIEHL-ABEGG - synchronous / 400 V / permanent magnet - image - 2
Add to favorites
Compare this product


Characteristics

AC/DC
DC
Type
synchronous
Voltage
400 V
Configuration
permanent magnet, compact
Applications
for elevator, traction
Power

Min.: 4,500 W
(6.118 hp)

Max.: 31,500 W
(42.828 hp)

Torque

710 Nm, 900 Nm, 1,120 Nm
(523.6691 ft.lb, 663.8059 ft.lb, 826.0696 ft.lb)

Diameter

240 mm, 320 mm, 400 mm, 500 mm, 600 mm
(9.45 in, 12.6 in, 15.75 in, 19.69 in, 23.62 in)

Description

ZAtop Properties & special features: Permanent magnet excited gearless drive for traction sheave cable elevators. Due to its compact design, the ZAtop is ideally suited for use in elevators with or without a machine room. The type-tested brake can be used as a safety device to prevent uncontrolled upwards cabin movement and unintended cabin movement from the landing. Drives in the ZAtop series provide for high energy efficiency and low noise levels when running. Applications and uses: Payload up to 6500 kg Speed up to 4.0 m/s Traction sheave diameter of 120 to 640 mm SM225 Payload: 1000 (1:1) / 2000 kg (2:1) / 3000 kg (4:1) Speed: up to 2.5 m/s Axle load: up to 5300 kg Installation width: < 400 mm Traction sheave: 280 mm to 640 mm Optional: Mechanical brake airing, forced ventilation for increased on time
