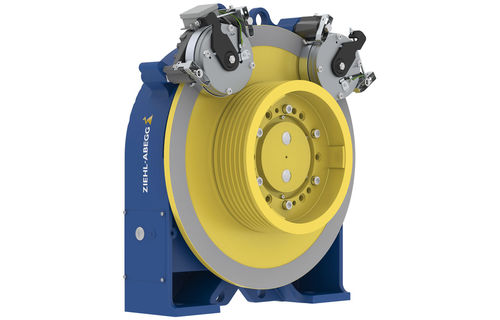

DC motor SM700
synchronous400 Vpermanent magnet

DC motor
DC motor
Add to favorites
Compare this product


Characteristics

AC/DC
DC
Type
synchronous
Voltage
400 V
Configuration
permanent magnet
Applications
for elevator, traction
Power

Max.: 20,000 W
(27.192 hp)

Min.: 3,000 W
(4.079 hp)

Torque

500 Nm, 750 Nm, 850 Nm, 1,000 Nm, 1,150 Nm
(368.7811 ft.lb, 553.1716 ft.lb, 626.9278 ft.lb, 737.5621 ft.lb, 848.1965 ft.lb)

Diameter

400 mm
(15.75 in)

Description

ZAsyn Properties & special features: Permanent magnet excited gearless drive for traction sheave cable elevators with and without a machine room. The slimline design and wall mounting in the elevator shaft allow for optimum shaft dimensions. The type-tested brake can be used as a safety device to prevent uncontrolled upwards cabin movement and unintended cabin movement from the landing. Drives in the ZAsyn series provide for high energy efficiency and low noise levels when running. Applications and uses Payload up to 2500 kg Speed up to 3.0 m/s Traction sheave diameter of 400 mm SM700 Payload: up to 1600 kg (2:1) Speed: up to 3.0 m/s Axle load: up to 3600 kg Installation depth: < 340 mm Traction sheave: 400 mm Optional: Mechanical brake airing via Bowden cable
