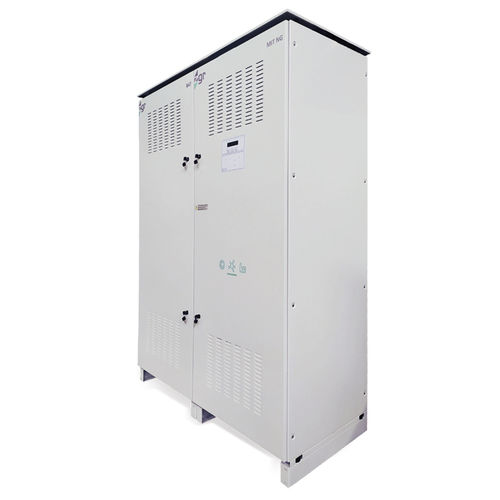

Thyristor rectifier battery charger ZGR MIT NG series

floor-standingleadNi-Cd

ZGR MIT NG charger-rectifiers are based on conventional thyristor technology with the addition of advanced control through an embedded microcontroller, thus achieving proper battery management and ensuring reliable power supply to the consumption points. The ZGR MIT NG range consists of single-phase or three-phase versions with current calibres adapted to the needs of each project. These systems are extremely customisable and ZGR can adapt aspects such as surge protection, distribution panels, etc. to the needs of each customer. Advantages High performance - Charging voltage stability ± 1% - 230V – 400V (+10 – 15%)*customizable - Charger current limitation - Battery ripple voltage ± 1.5%**depending on specification Flexibility - Wide range of voltages and currents - Numerous local communication protocols (RS232-RS485, EC 104, etc.) or remote (via IP) - Adaptable to any type and battery technology - Can be connected in parallel Strength - Optimised algorithms for storage management - Optimal operating range between 0 and 45 ºC - MTBF> 200,000 hours Easy installation - Frontal wiring - Built-in protection Easy to maintain - Remote and local signalling alarms - Functional information on the system variables by LCD display
