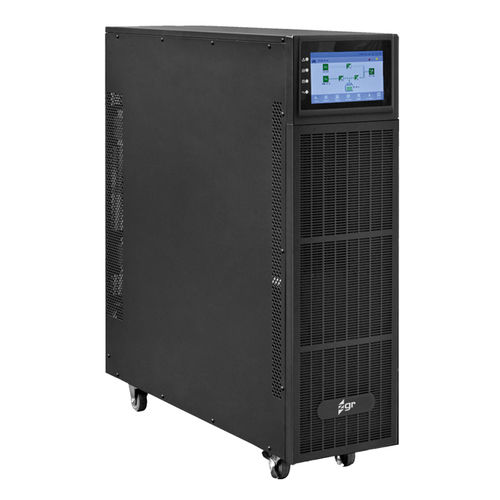

On-line UPS ZGR INFLUENCE series

parallelthree-phasepure sine wave

ZGR INFLUENCE series consists of a small-sized UPS, in tower format and available in 10, 20, 30, 40, 50 and 180 kVA models with three-phase input and output. It allows parallel of up to 4 units sharing batteries, thus occupying a small footprint, being one of the solutions with smaller dimensions of the market. Advantages High performance - - PFC: Input power factor ≥0.99 - - Output power factor 0.9 (1,0) - - Three-phase input and output - - Maintenance bypass - - Performance 95,5 % Flexibility - - Wide range of available powers - - Parallelable - - Optional extension of autonomy - - SNMP card (optional) - - Battery voltage configurable (16 / 18 /20 blocks) Strength - - Pure sinusoidal output voltage with low harmonic distortion - - IGBT rectifier - - Seamless compatibility with gensets - - EPO: emergency stop - - MCB protections input / output / bypass integrated Easy to maintain - - Battery test - - Touch screen TFT 7″ (in models 10 to 40 kVA) - - Software for comprehensive monitoring of the unit Applications - - Workstations - - Telecommunications - - Security - - Aeronautics - - Healthcare - - Military - - Data centres - - Industrial
