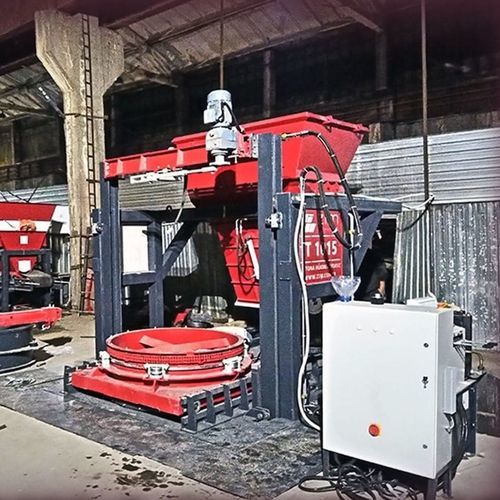

Pipe making machine ZIM TB 1200

for concrete manholesfor concrete ringsautomatic

This new generation machine can produce materials such concrete ring, conic, parcel and manhole frames, reduction parts and similar parts with 400mm - 1200mm diameter and 200mm - 1000mm height. Machines can be designed semi or full automatic according to requirements. We use SIEMENS brand PLC microprocessors on automatic machines. There exists motrar bunker and motrar filling systems on machines. Produced materials can be carried to drying area with carriage carts or forklifts. Production is done on production pallets, materials are carried to drying area with pallets by carriage baskets. Machine makes production by hydraulic press and vibration. Vibration system of the machine is special design of ZIM Engineers. Vibration system which have oil cooling system and special oil unit. This system can be controlled electronically. Special designed strong chassi of the machine enables long live producing without errors. Some materials can be produced with this machine. Ø1200 Concrete Ring with integrated joint or rubber joint Ø1000 Concrete Ring with integrated joint or rubber joint Ø620 / Ø1200 Concrete Conic Part with integrated joint or rubber joint Ø620 / Ø1000 Concrete Conic Part with integrated joint or rubber joint Ø620 Concrete Ring with integrated joint or rubber joint 800 x 800 mm Parcel Ring elements Concrete Pipe Dimensions - 400mm - 1200mm Concrete Pipe Length - 1000mm Vibration Motor Power - 11 kW Vibrator Type - Special Type Liquid Lubrication Hydraulic Motor Power - 11kW Hydraulic Cooling System - Cooling With air Command System - Manual - Electrical Motrar Bunker Volume - 1,5 m³ Filling Motor Power - 5.5 kW Vibrator Lubrication System - 1 kW
