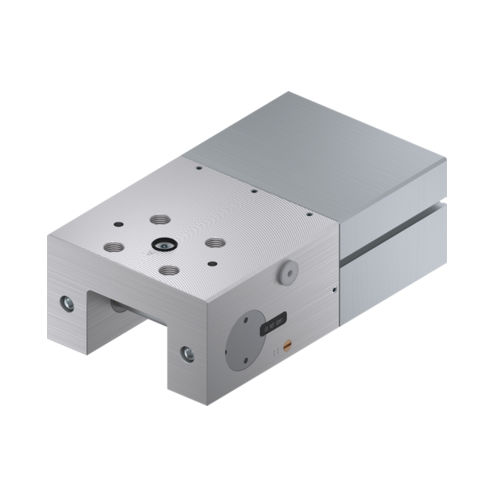

Emergency clamping/breaking element LBPS seriespneumaticmagneticrail
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic, magnetic
- Applications
- rail, for profile guide
- Other characteristics
- safety, emergency, compact, small
- Clamping force
Min.: 300 N
Max.: 3,600 N
Description
broad range of products
For all common profile rail guides
Safety element, energize to open (NC)
Safe braking in case of energy failure, through spring-loaded energy storage
high durability
Up to 5 million static clamping cycles
Small and narrow design
By using U-form piston
Maximum flexibility
Additional air connection from above
Simple status sensing
Querying the piston position with magnetic field sensor
