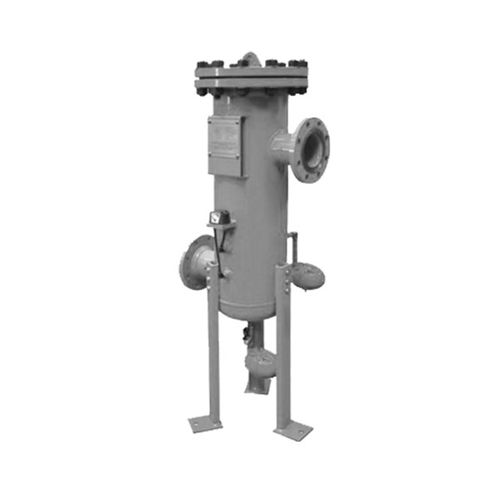

Compressed air filter H series

cartridgepressureflange-mount

The amount of compressed air passing through the nozzle to be filtered is 40 m³ / min and above, and our H series Flanged type pressure filters are preferred. It is designed with internal elements placed in the tank with a connecting rod system, manufactured in accordance with ASME and CE approved pressure vessel regulations. The condition of the internal elements can be observed from the outside with the help of the indicator (pollution indicator) mounted on the body. Internal elements can be easily changed by removing the flange connection on the body. With the drainage system, the water and particles accumulated in the collection points on the body are easily thrown out. Other Evacuation Options are as follows; * Time Adjusted Evacuation, * Additional Float Support, * Compressed Air Loss Preventing Evacuation, * Manual Relief with the Help of Ball Valves.
