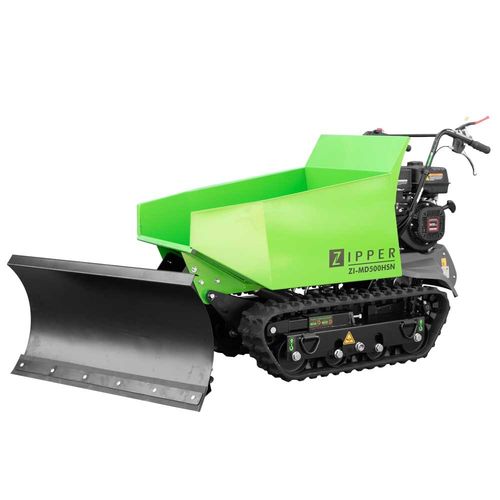

Crawler mini dumper ZI-MD500HSN

combustion enginefront-loading

• the all-rounder for the transport of bulk material over difficult terrain • goes easy through tight ways and doors due to narrow construction • hydraulic tilt function • solid steel design • Gear drive 6Forward + 2Reverse • low speed (1): V1(1): 1,21-1,44 km/h V2(1): 1,66-2,4 km/h V3(1): 1,8-3,1 km/h R1(1): 0,82-1,1km/h • high speed (2): V1(2): 1,8-2,2 km/h V2(2): 2,5-3,6 km/h V3(2): 2,7-4,6 km/h R1(2): 1,23-1,66 km/h • wheel protection and rubber chain • easy operation • powerful 300cm³ 6,8 kW motor motor data motor power s1 in W 6800 engine type LONCIN G300FA displacement in ccm 302 speed in min-1 3600 fuel type Benzin ROZ 95 transmission 6V + 2R measurements container dimensions in mm 950 x 680 x 465 track width in mm 180 hydraulic pump in l/min 9 total dimensions in mm 1705 x 704 x 975 volume level and vibration sound power level in dB(A) 101 weight gross weight in kg 346 packaging packaging width in mm 737 packaging length in mm 1.630 packaging height in mm 1.177
