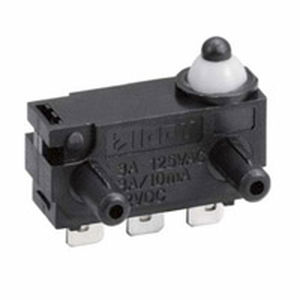

Touch micro-switch DW seriessingle-polewaterproofmomentary
Add to favorites
Compare this product
Characteristics
- Type
- touch
- Number of poles
- single-pole
- Protection level
- waterproof
- Other characteristics
- momentary, subminiature, electromechanical
- Primary current
3 A
- Voltage
125 V
Description
Dimension：
Unless otherwise specified,a tolerance of ±0.4mm applies to all dimensions.
Specifications：
Operating frequency(mechanical).....120
Operating frequency(electrical).....3A-10~30 Operation / mim
Contact resistance.....100m Ω(max)
Insulation resistance(Or at 250 VDC).....100M Ω(Min)
Dielectric strength(50 - 60 Hz).....150 VAC RMS
Service life(mechanical).....Min. 500000 Operations
Service life(electrical).....3A-Min. 6000 Operations
