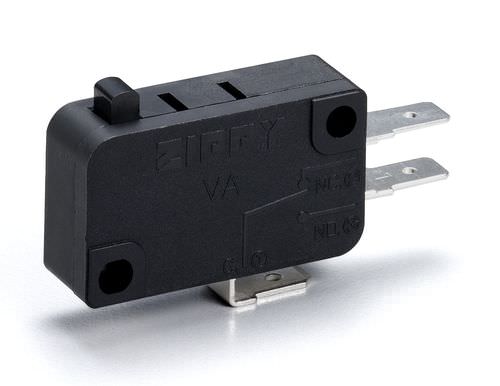

Touch micro-switch VA1 seriessingle-polemomentaryelectromechanical
Add to favorites
Compare this product
Characteristics
- Type
- touch
- Number of poles
- single-pole
- Other characteristics
- momentary, electromechanical
- Primary current
26 A
- Voltage
250 V
Description
Operating Frequency (mechanical).....120 operations / mim
Operating Frequency (electrical).....10~30 operations / mim
Contact Resistance (initial).....300m Ω (Max.)
Insulation Resistance (at 500VDC).....100M Ω (Min.)
Dielectric Strength (50-60Hz).....1500VAC RMS
Storage Temperature.....-25℃ to 85 ℃
Storage Humidity.....At 40 ℃,Max. 85% RH (Max.)
Service Life (mechanical).....Min. 10000000 operations
Service Life (electrical).....3A~26A Min. 10000 operations
Application：
Joysticks,TV Game,Time Recorder,Air Conditioner,Food Processor,
Juice Maker,Alarm,Mixer,Shredder Machine,Power Tool
