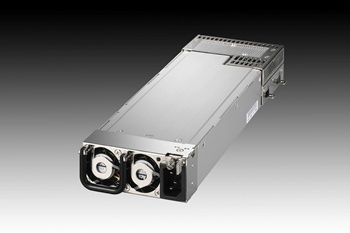

AC/DC power supply 1 400 W | M1W1-5E00V3H

with short-circuit protectionrack-mount

VOLTAGE: 115 ~ 240 VAC FULL RANGE (With ±10% tolerance) FREQUENCY: 47 ~ 63 Hz INPUT CURRENT: 15/10 AMPS MAXIMUM AT ANY LOW/HIGH RANGE INPUT VOLTAGE INRUSH CURRENT: 15/30 AMPS @115/230 VAC. (HIGH FREQUENCY PEAK AMPLITUDES LASTING LESS THAN 200US(AT 25 DEGREES AMBIENT COLD START FOR EACH POWER UNIT) * POWER MODULE TOTAL OUTPUT POWER OF +5V AND +3.3V NOT EXCEED 135W * POWER MODULE TOTAL OUTPUT POWER NOT EXCEED 1400W FOR 180~264VAC. * POWER MODULE TOTAL OUTPUT POWER NOT EXCEED 1200W FOR 103~132VAC. * TEMPERATURE RANGE: OPERATING 0℃ ~ 50℃, STORAGE 20℃ ~ 80℃; OPERATING TEMPERATURE FROM 0℃ SHOULD START FROM AC 90V * HOLD UP TIME: WHEN POWER SHUTDOWN DC OUTPUT 12V MUST BE MAINTAIN 17MSEC IN REGULATION LIMIT AT 115 VAC INPUT VOLTAGE AND 1000W OUTPUT LOAD * EFFICIENCY: TYPICAL 84% AT 115V, 86% AT 230V, FULL LOAD * POWER GOOD SIGNAL: ON DELAY 100 ms TO 550 ms, OFF DELAY 1 ms * OVER POWER PROTECTION: 110~150% * OVER VOLTAGE PROTECTION: +3.3V→3.7~4.1V, +5V→5.7~6.5V, +12V→12.8~13.9V * OVER CURRENT PROTECTION: THE POWER SUPPLY SHALL LATCH OFF IF THE +12V OUTPUT CURRENTS ARE OVER ITS LIMITATION. THE LIMITED CURRENT IS OVER 110~150% FOR EACH POWER MODULE. * SHORT CIRCUIT PROTECTION: +5V, +3.3V, +12V OUTPUT TO DC RETURN SHALL CAUSE NO DAMAGE AND POWER SUPPLY LATCH, -12V SHORT CIRCUIT TO DC RETURN SHALL CAUSE NO DAMAGE. * SAFETY: MEET UL, CUL, TÜV * MEET IEC-1000-3-2 CLASS D
