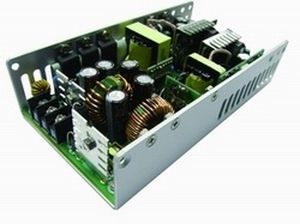

DC/DC power supply 150 W | BB1U-6150V

with short-circuit protectionopen frame

VOLTAGE： 18 ~ 36VDC INPUT CURRENT：10A/5A at any low/high range input voltage. INRUSH CURRENT：15Amps (MAX)@ 36 VDC (at 25 degrees ambient cold start ) * TEMPERATURE RANGE：OPERATING 0℃～70℃ (18~36VDC); NON-OPERATING TEMPERATURE: -20℃~80℃ * HOLD UP TIME：2mS MINIMUM AT 10V FULL LOAD (DC18V) * LEAKAGE CURRENT: 3.5MA MAX. AT NOMINAL VOLTAGE 36VDC * DIELECTRIC WITHSTAND：INPUT/OUTPUT 1800 VAC FOR 1 SECOND INPUT TO FRAME GROUND 1800 VAC FOR 1 SECOND * EFFICIENCY：82%(+/-2%) AT 18VDC/24VDC IN AND LOAD CONDITION; 12V/6.12A; 5V/4.98A; 3.3V/4.27A; -12V/0.39A; 5VSB/0.56A * OVER POWER PROTECTION: 110～160% MAX * OVER VOLTAGE PROTECTION: +3.3V→3.6~4.3V, +5V→5.6~6.5V, +12V→13.2~15V * SHORT CIRCUIT PROTECTION: +5V, +3.3V, +12V, -12V, +5VSB * SAFETY : TO MEET UL, CUL, TUV, CCC *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
