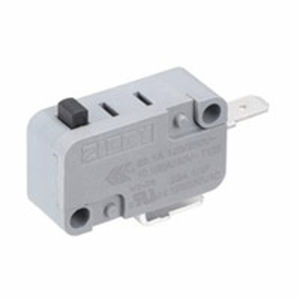

Touch micro-switch V3 seriessingle-polemomentaryelectromechanical
Add to favorites
Compare this product
Characteristics
- Type
- touch
- Number of poles
- single-pole
- Other characteristics
- momentary, electromechanical
- Primary current
25.1 A
- Voltage
Max.: 250 V
Min.: 125 V
Description
Dimension：
Unless otherwise specified,a tolerance of ±0.4mm applies to all dimensions.
Specifications：
Operating frequency(mechanical).....120
Operating frequency(electrical).....All ratings-10~30 Operation / mim
Contact resistance.....30m Ω(max)
Insulation resistance(at 500 VDC).....100M Ω(Min)
Dielectric strength(50 - 60 Hz).....1000VAC RMS
Service life(mechanical).....Min. 5000000 Operations
Service life(electrical).....Min. 10000 Operations
Application：
Joystick,TV Game,Time Recorder,Air Conditioner,Food Processor,Juice Maker,Alarm,Mixer,Shredder Machine,Power Tool
