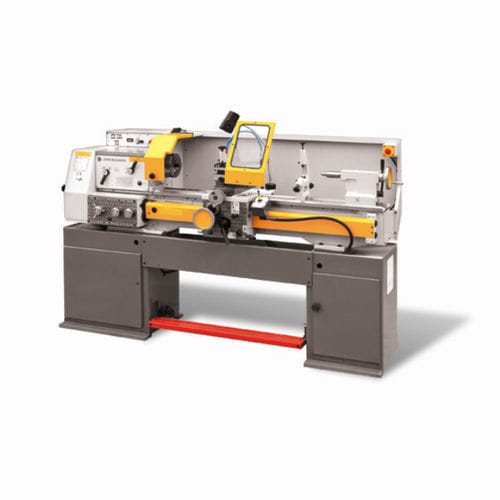

Conventional lathe CU325RD

horizontal2-axishigh-precision

CAPACITY - Height of centers - mm - 165 Swing over cross slide - mm - 190 Swing in gap - mm - 445 Width of bed - mm - 200 Distance between centers - mm - 500, 750, 1000 SPINDLE - Spindle nose DIN 55027 - No - 5 Spindle bore - mm - 32 Spindle taper - - Morse No. 4.5 HEAD STOCK - Number of spindle speeds - - Infinitely variable in 2 sub-ranges FEEDS - Number of feeds - - 48 Longitudinal feed range - mm/rev - 0.006-1.77 Cross feed range - mm/rev - 0.003-0.885 THREADS - Number of threads - - as below Metric thread range - mm - (48) 0.1-28 Inch thread range - tpi - (53) 75-2.5 Module thread range - Module - (19) 70-4 DP thread range - DP - (19) 70-4 CARRIAGE - Cross slide travel - mm - 150 Top slide travel - mm - 95 TAIL STOCK - Quill diameter - mm - 40 Quill taper - mm - Morse No.3 Quill traverse - мм - 95
