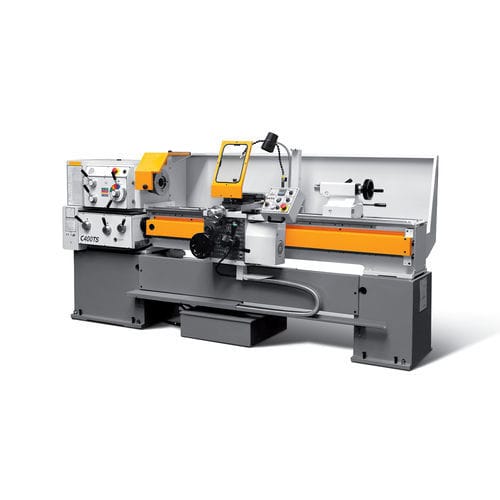

Conventional lathe C400TShorizontal2-axishigh-precision
Add to favorites
Compare this product
Characteristics
- Control type
- conventional
- Spindle orientation
- horizontal
- Number of axes
- 2-axis
- Performance
- high-precision
- Diameter
400 mm
(15.75 in)- Spindle speed
Max.: 2,120 rpm
(13,320.353 rad.min-1)Min.: 18 rpm
(113.097 rad.min-1)- Weight
1,700 kg
(3,748 lb)
Description
Height of centers - mm - 175 - 200
Swing over cross slide - mm - 200 - 250
Swing in gap - mm - 510 - 560
Width of bed - mm - 320
Distance between centers - mm - 750, 1000, 1500
SPINDLE - Spindle nose DIN 55027 - No - 6
Spindle taper - - Morse No.6
HEAD STOCK - Number of spindle speeds - - Infinitely variable in 4 sub-ranges
FEEDS - Number of feeds - - 40
Longitudinal feed range - mm/rev - 0.05-0.8
Cross feed range - mm/rev - 0.025-0.4
THREADS - Number of threads - - 40
Metric thread range - mm - 0.5-7.5
Inch thread range - tpi - 60-4
Module thread range - Module - 0.25-3.75
DP thread range - DP - 120-8
CARRIAGE - Cross slide travel - mm - 245
Top slide travel - mm - 125
TAIL STOCK - Quill diameter - mm - 60
Quill taper - mm - Morse No.4
Quill traverse - мм - 130
