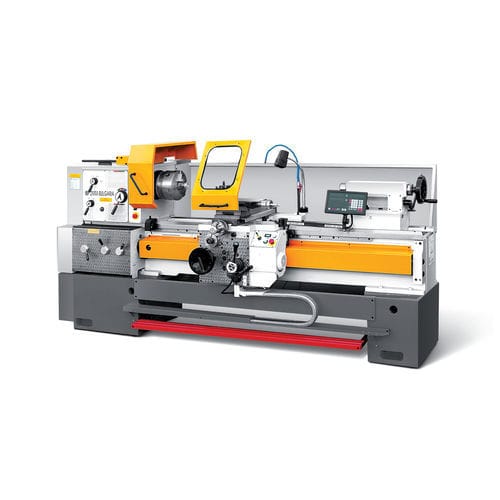

Conventional lathe CU400MRDhorizontal2-axis
Add to favorites
Compare this product
Characteristics
- Control type
- conventional
- Spindle orientation
- horizontal
- Number of axes
- 2-axis
- Diameter
440 mm, 500 mm
(17.32 in, 19.69 in)- Spindle speed
Max.: 2,000 rpm
(12,566.371 rad.min-1)Min.: 25 rpm
(157.08 rad.min-1)- Weight
2,900 kg, 2,950 kg
(6,393 lb, 6,504 lb)
Description
CAPACITY - Height of centers - mm - 220 - 250
Swing over cross slide - mm - 240 - 300
Swing in gap - mm - 640 - 700
Width of bed - mm - 400
Distance between centers - mm - 1000; 1500; 2000; 3000; 4000; 5000
SPINDLE - Spindle nose DIN 55027 - No - 8
Spindle bore - mm - 72
Spindle taper - Metric - 80
HEAD STOCK - Number of spindle speeds - - Infinitely variable in 3 sub-ranges
FEEDS - Number of feeds - - 120
Longitudinal feed range - mm/rev - 0,04 – 12
Cross feed range - mm/rev - 0,02 – 6
