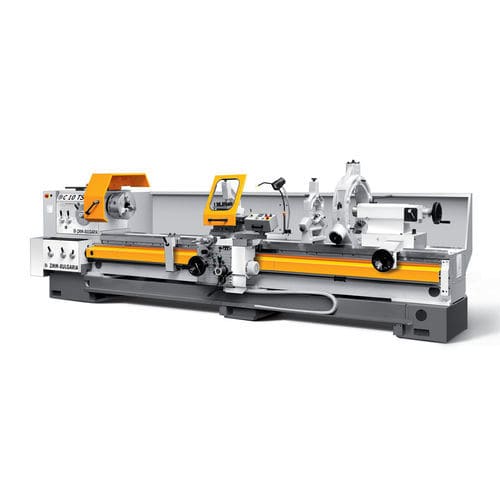

Conventional lathe C10TShorizontal2-axishigh-precision
Add to favorites
Compare this product
Characteristics
- Control type
- conventional
- Spindle orientation
- horizontal
- Number of axes
- 2-axis
- Performance
- high-precision
- Diameter
660 mm, 760 mm
(25.98 in, 29.92 in)- Spindle speed
Min.: 12.5 rpm
(78.54 rad.min-1)Max.: 1,320 rpm
(8,293.805 rad.min-1)- Weight
4,170 kg, 4,470 kg
(9,193 lb, 9,855 lb)
Description
Height of centers - mm - 330 - 380
Swing over cross slide - mm - 420 - 520
Swing in gap - mm - 850 - 950
Width of bed - mm - 560
Distance between centers - mm - 1500; 2000; 3000; 4000; 5000; 6000
SPINDLE - Spindle nose DIN 55027 - No - 11
Spindle bore - mm - 103 - 132
Spindle taper - Metric - 120 - 140
HEAD STOCK - Number of spindle speeds - - Infinitely variable in 3 sub-ranges
FEEDS - Number of feeds - - 150
Longitudinal feed range - mm/rev - 0,039 – 18
Cross feed range - mm/rev - 0,02 – 9
