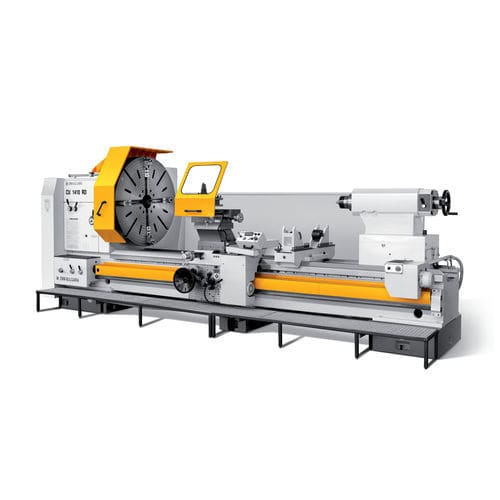

Conventional lathe CU1410RDhorizontal2-axishigh-precision
Add to favorites
Compare this product
Characteristics
- Control type
- conventional
- Spindle orientation
- horizontal
- Number of axes
- 2-axis
- Performance
- high-precision
- Diameter
1,410 mm
(55.51 in)- Spindle speed
Max.: 500 rpm
(3,141.593 rad.min-1)Min.: 1.5 rpm
(9.425 rad.min-1)- Weight
14,000 kg
(30,865 lb)
Description
CAPACITY - Height of centers - mm - 705
Swing over cross slide - mm - 1000
Width of bed - mm - 800
Distance between centers - mm - 2000; 3000; 4000; 5000; 6000; 7000; 8000; 9000
SPINDLE - Spindle nose DIN 55027 - No - A 15
Spindle bore - mm - 205
Spindle taper - Metric - 215
HEAD STOCK - Number of spindle speeds - - Infinitely variable in 4 sub-ranges
FEEDS - Number of feeds - - 160
Longitudinal feed range - mm/rev - 0,032 – 38,9
Cross feed range - mm/rev - 0,016 – 19,45
