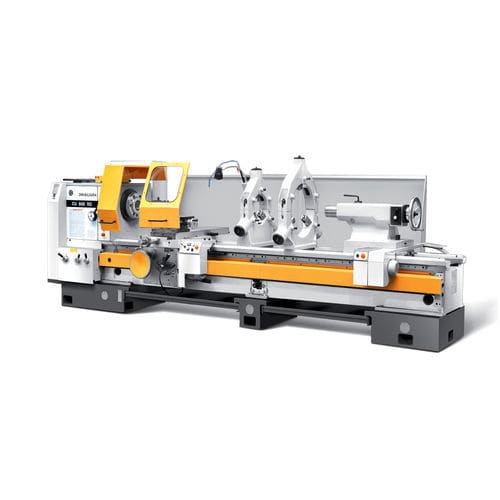

Conventional lathe CU1250RDhorizontal2-axishigh-precision
Add to favorites
Compare this product
Characteristics
- Control type
- conventional
- Spindle orientation
- horizontal
- Number of axes
- 2-axis
- Performance
- high-precision
- Diameter
1,320 mm
(51.97 in)- Spindle speed
Min.: 3.7 rpm
(23.248 rad.min-1)Max.: 1,000 rpm
(6,283.185 rad.min-1)- Weight
8,450 kg
(18,629 lb)
Description
CAPACITY - Height of centers - mm - 625
Swing over cross slide - mm - 940
Swing in gap - mm - 1500
Width of bed - mm - 700
Distance between centers - mm - 1500; 3000; 4000; 5000; 6000; 7000; 8000; 9000; 10000
SPINDLE - Spindle nose DIN 55027 - No - 15
Spindle bore - mm - 155
Spindle taper - Metric - 160
HEAD STOCK - Number of spindle speeds - - Infinitely variable in 4 sub-ranges
FEEDS - Number of feeds - - 160
Longitudinal feed range - mm/rev - 0,032 – 38,9
Cross feed range - mm/rev - 0,016 – 19,45
