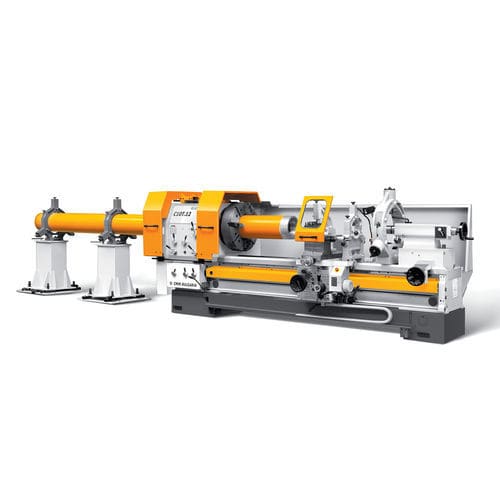

Conventional lathe C10T.10horizontal2-axisfor oil industry applications
Add to favorites
Compare this product
Characteristics
- Control type
- conventional
- Spindle orientation
- horizontal
- Number of axes
- 2-axis
- Applications
- for oil industry applications
- Diameter
800 mm
(31.5 in)- Spindle speed
Max.: 400 rpm
(2,513.274 rad.min-1)Min.: 8 rpm
(50.265 rad.min-1)- Weight
6,000 kg, 6,100 kg
(13,228 lb, 13,448 lb)
Description
Our oil country lathes are designed for turning pipes and pipe fittings for the oil and gas industry. These machines can be used for a variety of turning operations, including cutting metric, inch, module and pitch threads. A standard machine includes two 3-jaw self-centering chucks, а taper turning attachment,two stands - one with fixed steady and one with rolling quills. Our spindles are
assembeld with preloaded angular contact bearings from leading manufacturers like 'SKF' and 'FAG'. All major components are manufactured from stainless steel, which ensures reliable operation and accuracy.
Catalogs
ZMM_katalog_2021_5
64 Pages
