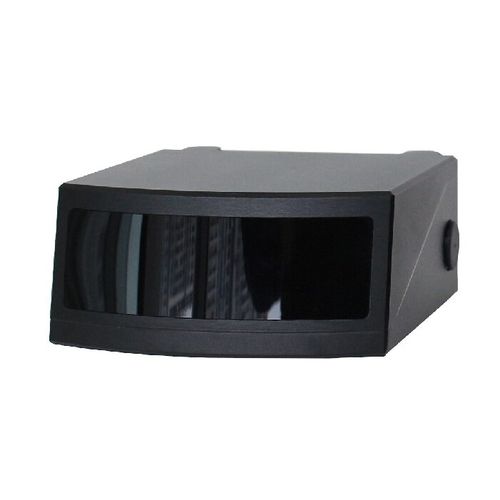

Small LIDAR sensor RS-LiDAR-M1​ ​

Automotive grade MEMS solid state LiDAR RS-LiDAR-M1​ Overview RS-LiDAR-M1 is a MEMS solid-state LiDAR aiming for mass production sales of automotive grade in 2021. High-precision LiDAR with a measuring distance of 200mx20 ° and 120 beam and it is more reliable, cheaper, mass-produced, and easier to install in the car body than the rotary type. Specifications RS-LiDAR-M1 specifications SENSOR Laser wavelength: 905 nm Laser class: Class 1 Measurement accuracy: ± 5 cm Measuring distance: 120m on 10% US NIST standard Vertical viewing angle - -12.5° to +12.5° Vertical resolution 0.2 ° (average) Horizontal viewing angle: -60.0° to +60.0° Horizontal resolution: 0.2 ° (average) Sample rate: 15 FPS Body dimensions: W: 110 x H: 50 x L: 120 mm Body weight: 0.8 kg
