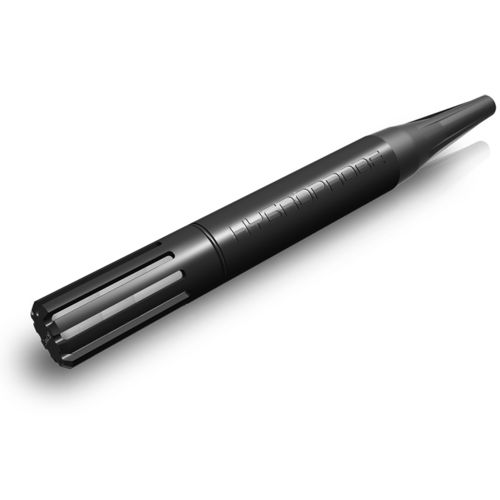

Digital humidity and temperature probe DSP1200

analogIP64

Temperature and Humidity Probe User's Guide · High accuracy with measuring range customized · Optional analog signal or digital signal · Single-point and multi-point calibration · Compatible with Rotronic and Vaisala's probe command · Optional interface M8 , RJ45 and 4 wire · Toxicity and halogen free material , complying with GXP Measuring Data T Measuring Range: -30℃~70℃ , -40℃~60℃(-40℃~85℃ customized) T Accuracy: ±0.3℃(23℃±2℃) , ±0.5℃(FS) T Resolution: 0.1℃/0.2℉ RH Measuring Range: 0%~100%RH RH Accuracy: ±3%RH(10%~85%RH) / other range ±5%RH(23℃±2℃) RH Resolution: 0.1%RH General Power Supply: 5V~28V DC (0~5V 8V DC~28V DC 0~10V 14V DC~28V DC) Output Type: Analog signal: Voltage 0~1V / 0~2.5V / 0~5V / 0~10V, linear frequency, analog frequency Digital signal: UART / I2C / SPI / USB / RS485 Interface: M8、RJ45、4 Wires Storage Temperature: -50℃~90℃ ESP Protection: ±25KV IP Class: IP64 Sensing Probe T Sensor model: NTC H Sensor model: Humidity capacitance General Feature Housing: ABS+PC,flame-retardant,toxicity and halogen free Wire: 2m / 3m / 5m (customized) Weight: 9g
