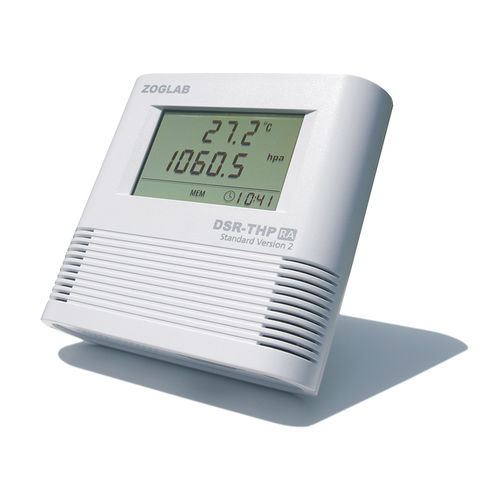

Temperature and humidity data-logger DSR-THP

pressureUSBRS-485

Data Logger for Temperature Humidity and Pressure · Simultaneously measures and logs temperature, humidity and pressure · Support out-of-limit alarm as well as on-line linear calibration · High precision of ±0.5hPa in the full range of 500.0a~1100.0 hPa · In compliance with ISO17025, GLP and aerospace engineering practices, etc · Suitable for high-end laboratory, semiconductor research, aerospace, meteorology, defence and protection and other applications Measuring Data T Measuring Range: -30℃~70℃ T Accuracy: ±0.3℃(23℃±2℃), full scale ±0.5℃ T Resolution: 0.1℃/0.2℉ RH Measuring Range: 0%~100%RH RH Accuracy: ±3%RH(10%~85%RH) / other range ±5%RH(Testing Environment 23℃±2℃) / ±2%RH(High-precision version) RH Resolution: 0.1%RH P Measuring range: 500.0~1100.0hPa P Accuracy: ±0.5hPa A / ±1.0hPa B P Resolution: 0.1hPa General Memory Size: 10,918[A] / 21,840[B] / 180,000[C] / 360,000[D]values Alarm: High level and low level, display+beep+backlight Sampling Interval: 2s、5s、10s、30s、60s、255s Logging Interval: 2seconds~24hours Start with Delay Time: 1~120s Start Mode: Start immediately / Time-lapse start / Timing start End Mode: Full / FIFO / Tresetting units / Timing end Timing Start / End: Random start / End with format YYMMDD HHMMSS Storage Temperature: -50℃~90℃ ESD Protection: ±25KV Interface: RS232 / RS485[R] / USB[U] / LAN[L] / Wireless [W、B、Z、F、G] Battery: 3.6V lithium battery ×1 Battery Lifetime: Typical 1year (with a sample rate of 10 seconds),5 years （in sleep mode） RTC Battery: CR2032 Clock Accuracy: <12 mins/year External voltage: 5~24V DC Software: ANALYSIS IP Class: IP54
