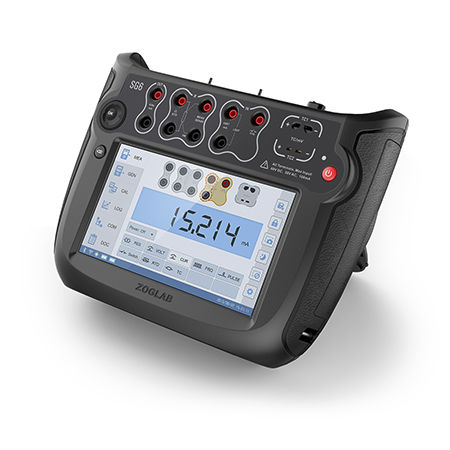

Signal calibrator SG6

high-precisionHART

SG6 is an intelligent signal calibrator with high-precision measurement calibration and signal generator in one . It can simultaneously output / measure multiple electrical signals, and supports a variety of communication modes, such as RS485 bus, HART, Wi-Fi, BT, GPRS, GPS, Compass, etc., with functionality, practicality, convenience. With six working modes of measuring, generation, calibration, logging, communication, file, it means SG6 is not only a calibrator, but also a perfect combination of digital multimeter, signal generator, data logger, field communicator and file manager. With such a multifunctional machine for easy operation, paperless calibration and file management,SG6 makes your work more efficient and accurate. Voltage measurement Measuring range 1: -1~1V Resolution: 1μV Accuracy: ±3μV Measuring range 2: -10~10V Resolution: 0.01mV Accuracy: ±0.2mV Input impedance: > 2MΩ Support units: V, mV, μV Resistor measurement Measuring range: 0~2000Ω Resolution: 0.001Ω Accuracy: ±0.005Ω Measuring current: 0.5mA, 1mA Support units: Ω,KΩ 4 Wires: The same to measuring specification 3 Wires: Add 10mΩ Digital decoding Type: 7/8 bit Gray Code Electrical level: 5V, 12V Trigger: Effective for high or low electrical level Current measurement Measuring range: 4~20mA Resolution: 1μA Accuracy: ±5μA Input impedance: 1MΩ Support units: Hz, KHz Pulse measurement Measuring Range: 0~99999 Resolution: 1 pulse Accuracy: 1 pulse Input impedance: > 1MΩ
