Pressure measuring device APM1200
calibrationbenchtopUSB

pressure measuring device
pressure measuring device
Add to favorites
Compare this product


Characteristics

Measured value
pressure
Applications
calibration
Configuration
benchtop
Other characteristics
USB

Description

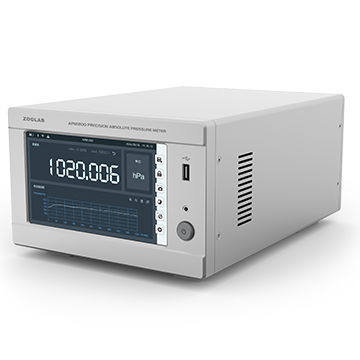

APM1200 precision absolute pressure meter uses high-accuracy sensor, with excellent accuracy and stability. Optional measuring range 0~1100hPa and 500~1100hPa, accuracy could reach 0.01%FS. APM1200 is an ideal solution for efficient pressure calibration with humanized design, and its 7 inch TFT touchscreen could read the pressure value directly; multiple pressure units are optional; support communication interfaces like RS232/485, USB, LAN, etc.; Built-in battery could support continuous work for 8 hours. Specification Measuring range: 0~1100/500~1100hPa Measuring accuracy: 0.01%FS Resolution: 0.001hPa Stability: Superior to 0.1hPa/year Over-pressure limitation: 120%FS Calibration circle: 365 days Specification Display: 7 inch, 800 X 480 TFT LCD touch screen Working environment: -10~40℃, 10%~95%RH(Non condensing) Storage environment: -20~70℃,10%~95%RH(Non condensing) Power supply: 100~240VAC 0.5A,50/60Hz Battery: Lithium polymer battery 14.8V/8000mAh Battery life: Continuous work for 8 hours/ standby for 90 days Communication ports: RS485/232,USB,LAN Dimensions: 215×133×302mm(w/h/d)(3U, 1/2 size of 19 inch rack ) Weight: 4.5kg
