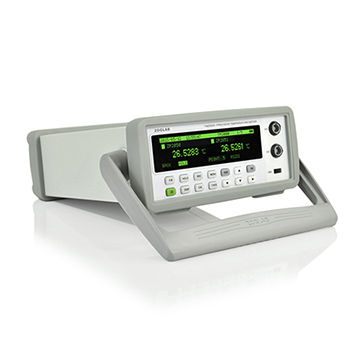

Temperature measuring device TM2000
Pt100benchtopUSB

temperature measuring device
temperature measuring device
temperature measuring device
temperature measuring device
Add to favorites
Compare this product


Characteristics

Measured value
temperature
Technology
Pt100
Configuration
benchtop
Other characteristics
USB

Description

TM2000 is a high accuracy meter, and can connect first class standard platinum resistor, supporting two channels of PT25 or PT100, and the temperature resolution can reach to 0.1mK(0.0001℃).TM2000 is equipped with high-bright display, so clear reading could be effective under sunshine; Series port, Ethernet and USB communication interfaces are available; Built-in battery can unceasingly work for more than 12 hours, humanized design and convenient operation. Specification T Measuring range: -189~960℃ T Accuracy: ±0.005℃(Host machine), ±0.005℃(PT25 first class), ±0.01℃(PT25 second class) T Resolution: 0.001℃(could update to 0.0001℃) Resistor measuring range: 0Ω~400Ω Resistor measuring accuracy: ±0.0005Ω(0Ω~20Ω),±25ppm(20Ω~400Ω) Resistor Resolution: 0.0001Ω Specification Temperature stability: 0.5ppm / ℃ Long-term stability: 6ppm / year Measuring period: Two channels 2 seconds Drive current: 1.0mA / 1.5mA Display unit: ℃, ℉, K, Ω Logging interval: 1 second~24 hours Maximum record data: Internal 8000 units, external USB Flash disk Probe configuration data: Support configuration data for 128 probes Front probe port: 4-core wire special socket Back probe port: Multifunctional socket Measurement calibration: Fixed point calibration, linear calibration Interface: RS232 / 485, USB, Ethernet (LAN), Web Service Working environment: 10~40℃ , 10%~95%RH(No condensation) Storage environment: -20~70℃ , 10%~95%RH(No condensation) AC power: 100~240VAC 0.5A、50~60Hz Battery: 7.4V 2600mAh , lithium polymer battery Battery lifetime: 12 hours(Continuous work) EMC: EN 50081-1 Class B , EN 50082-1 Class B ESD Protection: ±25KV Weight: 1.2kg Dimensions: 215×91×313.5mm
