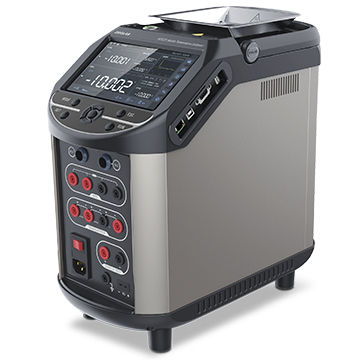

Temperature calibrator MTC25

precisionlaboratoryliquid bath

MTC25 mobile dry block is a precision temperature calibrator with liquid bath/dry block combined; temperature range -22℃~155℃. Featured technology with divided zone temperature control enable its excellent homogeneity and stability: homogeneity±0.05℃(dry), ±0.01℃(liquid); stability ±0.005℃. MTC25 adopts humanized design, 7 inch touch screen color display, friendly user interface; multiple communication interfaces; could connect with external reference sensor, 145mm immersion depth; Maximum and minimum temperature alarm to prevent damage to sensors caused by excessive temperature; support programmable control to realize fully automatic calibration. MTC25 is an ideal solution for laboratory and mobile calibration. Specification T Measuring range: -22℃~155℃ Accuracy (with external reference sensor): ±0.05℃ Accuracy (with internal reference sensor): ±0.18℃ Liquid homogeneity: ±0.01℃ Dry homogeneity: ±0.05℃ Stability: ±0.005℃ T Resolution: 0.1℃ or 0.01℃ or 0.001℃ Specification Working environment: 0℃~35℃, 0 %~90 %RH (non-condensing), elevation< 2000m Immersion depth: 145mm Well diameter: Φ60mm Heating time: -20℃~23℃ 9 minutes, 23℃~80℃ 23 minutes Cooling time: 80℃~23℃ 24 minutes, 23℃~0℃ 15 minutes, 0℃~-15℃ 21 minutes Time to stability: <15 minutes Display: 7 inch, 800×480 TFT LCD touch screen Power supply: 100~240VAC 0.5A, 50~60Hz Communication interface: RS232/485, USB, Ethernet(LAN), Wi-Fi, Web Service EMC: EN 50081-1 Class B, EN 50082-1 Class B ESD Protection: ±25KV Dimensions: 190×330×354mm Weight: 11.5kg Specification T Measuring range: -100℃~200℃ T Accuracy: ±0.05℃ Reference feature: ITS-90, IEC-751 Sensor dimensions: Φ6×300mm stainless steel
