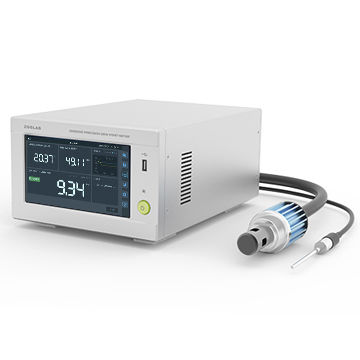

Precision Dew Point Meter
• Precision drift free dew point measurement
• Highest accuracy ±0.2°Cdp
• Robust and durable sensor design
• Force frost technology
Specification
Measuring accuracy: ±0.2℃dp,±0.1℃ Temperature
Measurement units: °C, °F dew point; %RH; °C, °F temperature; g/m3; g/kg; aw; Δ (t – t dew point)
Resolution: Resolution 0.1 for °C, °F and %RH, 0.01 for g/m3 and g/kg
Response speed: 1°C/sec plus settling time (dew point dependant)
Power supply: 100~240VAC 0.5A,50~60Hz
Battery: Lithium polymer battery 14.8V/8000mAh
Battery life: 8 hours
Analog output: 4~20mA
Communication interface: RS232/485、USB、LAN
Working temperature: -20~50℃(Whole device)
Dimensions: 215×133×302mm(w/h/d)(3U, 1/2 size of 19 inch rack )
Weight: 5kg
Specification
Dew point range: -30℃dp@ sensor temperature of 20℃ +90℃dp@ sensor temperature of 90℃
Temperature range: -40℃~90℃(dew point sensor working temperature)
Humidity range: <2%RH~100%RH
Min measured dew point: -30℃ @20℃
Mirror material: Gold-plated copper(Standard)
Sensor material: 316L stainless steel(Standard)
Temperature measuring: 4 wires PT100, 1/10 DIN
Sample flow: 0~2 NI/min(Under sampling)
Max. speed: 10 m/sec direct insertion, 30 m/sec with sintered guard
Pressure: 2Mpa
Cable length: 2m/5m/customized
Specification
Temperature measuring: 4 wires PT100, 1/10 DIN
Cable length: 2m/5m/customized
