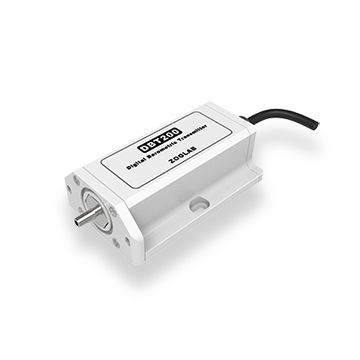

Barometric pressure transmitter DBT200

RS-485RS-23224 Vdc

DBT200 is a highly accurate and cost-effective barometric sensor and transmitter. It can achieve accuracy of ±0.15hpa or ±0.2hpa full scale and a resolution of 0.01hpa over a wide temperature range -40~50℃. DBT200 supports IP66 protection rating and 1 million units of data or up to 1 month of recording capacity. For easy integration with data loggers,DBT200 supports various communication interfaces including RS232 and USB. DBT200 is a widely used digital barometer in meteorology,agriculture,environmental protection,civil aviation,marine monitoring and other fields. Technical specification Pressure measuring accuracy: ±0.15hPa(-40℃~50℃)classA; ±0.2hPa(-40℃~50℃)classB Pressure measuring resolution: 0.01hPa Stability: ≤0.2hPa/year Calibration cycle: 1 year Stabilization time: ＜30s Memory: 1.04 million units Storage environment: -40℃~85℃, 5%~95%RH(Non condensing) protection rating: IP66 Power supply: 7~24VDC Operating current: 85mA@12V Communication interface: RS232/485 EMC: EN 50081-1 Class B, EN 50082-1 Class B ESD Protection: ±25KV Dimensions: 130×62×32mm Weight: 300g（Max） Certificates: CE
