Environmental analysis air quality meter AQI

CONO2SO2

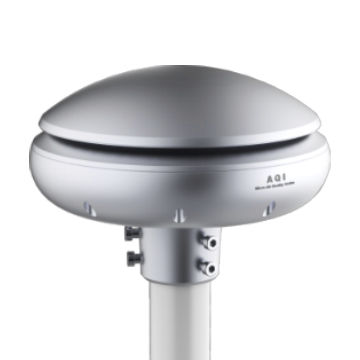

AQI is a micro air quality station with an exquisite design. It adopts the modular, digital, and solid-state design concept for its sensors, making it easy for various configurations and disassembly. It can measure six key elements of air quality. It uses electro-chemical sensors and an optical particle counter to monitor air pollution and particles. The main measurement and monitoring elements are SO2 , NO2 , CO, O3 , PM2.5, and PM10. AQI can be widely used in many applications including smart city, road weather, agriculture, forestry and plant protection. SO₂measuring range: 0~100ppm SO₂linearity: 0~10ppm linearity；0~-2ppb FS NO₂measuring range: 0~20ppm NO₂linearity: 0~5ppm linearity；±0.5ppb FS CO measuring range: 0~1000ppm CO linearity: 0~500ppm linearity；20~35ppb FS O₃measuring range: 0~20ppm O₃linearity: <±0.5ppm FS CO₂measuring range: 400~2000ppm CO₂linearity: ±70ppm；±3%FS Particle measuring range: 0~999μg/m³ Particle measuring accuracy: ±10μg/m³（0~99g/m³），±10%（100~999g/m³） Communication ports: RS232、RS485、Bluetooth/WIFI/4G/NB-IoT Power supply: 7~24VDC Operating environment: -30℃~50℃，10%RH~95%RH (no condensation) External dimensions: Φ244.0×184.0 mm Weight: 1.0kg Certification: CE,FCC,VCCI,CTICK
