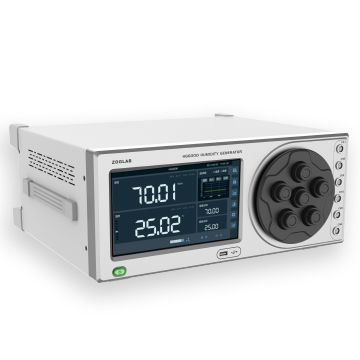

Calibration humidity generator HG6000

calibration humidity generator
calibration humidity generator
Add to favorites
Compare this product


Characteristics

Type
calibration

Description

• Humidity control range 10~95%RH • Humidity stability ≤±0.2%RH • Temperature control range 5~50℃ • Temperature stability 0.1℃(23℃),0.2℃(Full Scale) • Full scale stability less than 10 mins • Support to calibrate 5 sensors at the same time Specification T&RH measuring range: 5~50℃ ; 10~95%RH Control stability: ≤±0.2%RH;0.1℃(23℃),0.2℃(Full Scale) T accuracy: ≤0.2℃ RH accuracy of reference sensor((23℃): ±1.0%RH(10~90%RH);±2.0%RH(≤10,≥90%RH) T&RH stability of the calibration chamber: ±0.2%RH;±0.1℃ T&RH homogeneity of the calibration chamber: ±0.3%RH;±0.2℃ RH adjusting response time: Change with 30%RH costs less than 5 mins Average cooling speed: 1.0℃/min(Environment temperature than less 23℃) Heating speed: 3.0℃/min Calibration chamber inside diameter dimension: Φ110×200mm Calibration window dimensions: Φ25mm, Φ18mm, Φ15mm, Φ12mm, special dimension for option Specification Working environment: -10~40℃,10%~95%RH(Non condensing) Storage environment: -20~70℃,10%~95%RH(Non condensing) Desiccant: Silicagel, reusable Power supply: 100~240VAC 1.3A,50/60Hz Communication interfaces: RS485/232,USB,LAN,Wi-FI* Dimensions: 442×190×401mm(w/h/d) (4U,size of 19 inch rack) Weight: 12kg
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
