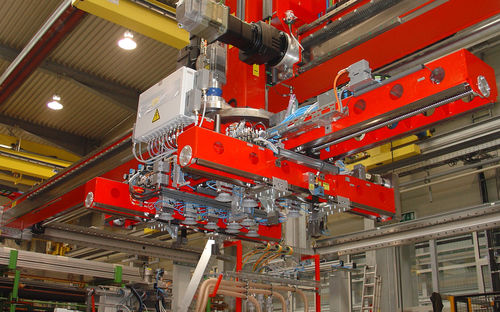

Electric linear gantry module

The ZOLLERN line and area gantries are specially developed and produced for systems in the automotive industry, the aerospace industry, the machine tool and metalworking industry, the construction industry, the food industry and other industries. Maximum traverse paths up to 100 m, special lengths available by request Realisation as a 1-axis system, 2-axis system XZ, area gantry XXZY and others, as well as additional axes A, B and C Combination of variable ZOLLERN linear and telescoping axes and rotary modules Capable of being expanded to two and more independently-driven carriages on one gantry axis Drive attachment of gearbox, motor or geared motor can be freely selected if the customer desires Pick and place, multiple storage, multiple loading Load range from 15 kg to 10,000 kg depending on the series Special weights > 10,000 kg by request Vertical and horizontal installation Bending and torsionally stiff design Carriage in torsionally-rigid light metal design with roller bearing rollers Drive via toothed belt or rack and pinion, spindle or linear drive Accuracy +/- 0.5 mm Reduced accuracy +/- 0.05 mm Low-noise due to helical cut racks and pinions, belts or linear motors Speed 15 m/s Acceleration 10 m/s² Accessories: Supports, drip trays, energy chains, switch mounting, sinking protection, energy supply, energy consumption measurement, central lubrication, rotary feedthrough
