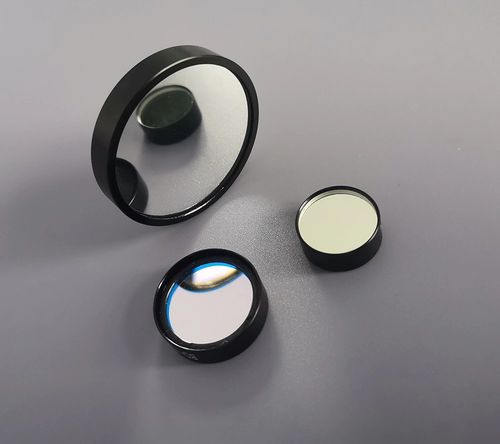

UV band-pass optical filter ZLY204

narrow-band

What is a Narrow Bandpass Filters? It is an Optical Lens that only allows the required light to pass through. The narrow-band filter selectively passes through a certain wavelength of light. At present, narrow-band filters are widely used in different sensors for the separation and synthesis of optical signals. Zoolied provides a variety of narrowband filters with different wavelengths. The following are the Zoolied 230nmUV Bandpass Filters optical specific parameters: Diameter: 10-40mm Thickness (mm): 6.1 mm +/- 0.2 Blocking: <0.01% (Od4 Optical Filters) @ 200nm to 3000nm (upward for a CWL filter with 1600nm) <0.01% (OD4 Optical Filters) @ 200nm to 2000nm (for all other filters) CWL tolerance (nm): ± 10% of FWHM HBW tolerance (nm): ± 10% of FWHM Best working temperature: 23°C Available temperature limit: -50°C to +80°C Zoolied offers a variety of optical filters, such as PCR Fluorescence Analyzer Filters ,Longpass Filters, Dichroic Filter, and Biochemical Analyzer Filters. ZOOLIED provides multiple anti-reflection coating options for the Ultraviolet (UV), visible, or Ir Filters and also provides uncoated Optical Glass Filters based on K9 optical glass and UV fused silica. Looking for ideal optical filters Manufacturer & supplier? We have a wide selection at great prices to help you get creative. All the optical optical filters are quality guaranteed. Zoolied is China Origin Factory ofoptical filters.
