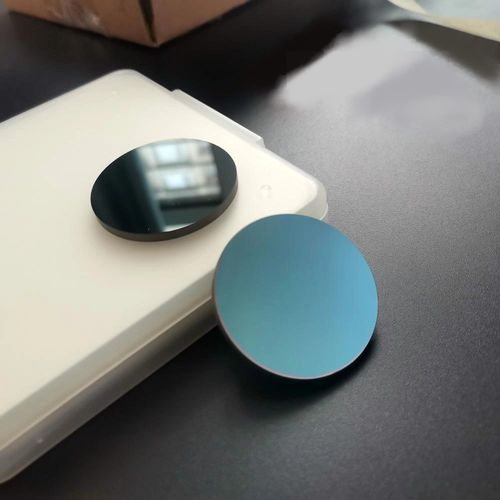

Infrared optical window ZLY189

roundflat squaregermanium

Zoolied offers Lwir Ge Windows and IR Ge windows both available uncoated or a coating on both sides, such as Germanium With Dlc Coating, BBAR COATING, AR COATING, that provides <2% average reflectance from 1.9 to 6 µm (offered in Ø1" size only) or <1% average reflectance from 7 to 12 µm. Our Ge windows can be used in thermal imaging products. Zoolied Single Crystal Ir Germanium are available off-the-shelf with three anti-reflection coating options: 3 - 5μm for mid-infrared applications, 3 - 12μm for broadband multispectral applications, or 8 - 12μm for thermal imaging applications. Due to its high index of refraction (around 4.0 from 2 - 14μm), an anti-reflection coating is recommended on these Germanium windows for sufficient transmission in the region of interest. Germanium is subject to thermal runaway, meaning that the transmission decreases as temperature increases. As such, these Germanium windows should be used at temperatures below 100°C. Germanium’s high density (5.33 g/cm3) should be considered when designing for weight-sensitive systems. The Knoop Hardness of Germanium (780) is approximately twice that of magnesiμm fluoride, making it ideal for infrared applications requiring rugged optics. Looking for ideal D50mm*2mm 3mm Infrared Windows Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the IR Polished Germanium Window are quality guaranteed. Zoolied are China Origin Factory of IR Polished Window. If you have any question, please feel free to contact us. Zoolied’s Optical Windows are also offered in a variety of substrates, such as Dlc Coating Silicon Windows, N-BK7(H-K9L), and Ir Znse Windows.
