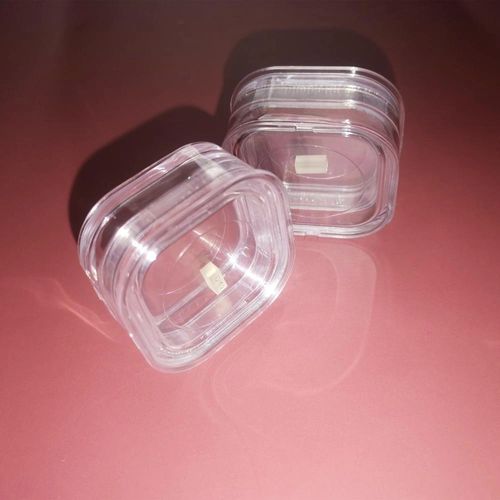

Lithium triborate (LiB3O5, LBO) crystal ZLY892

laser

LBO crystals is an excellent nonlinear crystal.For frequency doubling(SHG),tripling(THG) of Nd:YAG, Nd:YLF, Nd:YVO4 lasers, it is one of the most useful nonlinear optical materials in ultraviolet and visible laser applications. Advantages: •broad transparency range from 160nm to 2600nm (see Figure 1); •high optical homogeneity (δn≈10-6/cm) and being free of inclusion; •relatively large effective SHG coefficient (about three times that of KDP); •wide acceptance angle and small walk-off; •type I and type II non-critical phase matching (NCPM) in a wide wavelength range; •spectral NCPM near 1300nm. •high damage threshold(18.9 GW/cm 2 for a 1.3ns laser at 1053nm); LBO’s main applications: • SHG, THG of Nd lasers • SHG of Ti:Sapphire, Cr:LiSAF and Alexandrite lasers • OPA and OPO Zoolied is a leading Crystal Optics supplier. It's always the reliable choice for consumers. We can produce a variety of Crystal Optics such as LBO Crystal Lithium Triborate Crystal, BBO Crystal Beta-Barium Borate Crystal, CaF2 Crystals Calcium Fluoride IR Optics, Nd YAG laser crystals, Diffusion bouding crystals and Ti:Sapphire Crystal. If you have other requirements, we also can make customized products.
