- Zoomlion Heavy Industry Science & Technology Co.,

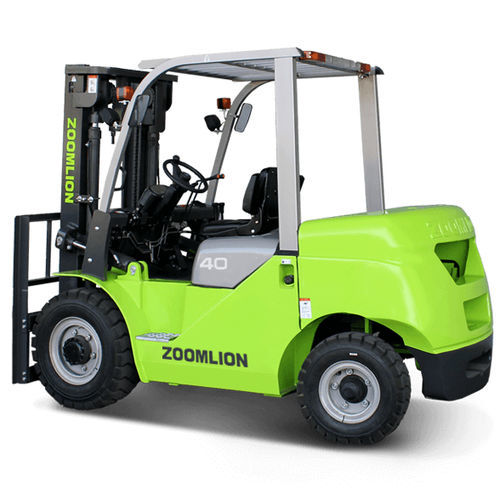

Electro-hydraulic forklift FD40miniwith combustion engineride-ontransport
Add to favorites
Compare this product
Characteristics
- Motor type
- electro-hydraulic, with combustion engine
- Operator
- ride-on
- Applications
- transport
- Other characteristics
- 4-wheel
- Carrying capacity
Min.: 4,000 kg
(8,818.5 lb)Max.: 5,000 kg
(11,023.1 lb)- Lifting height
7,000 mm
(275.59 in)- Overall width
1,410 mm
(55.5 in)- Overall length
2,930 mm
(115.4 in)- Load center distance
500 mm
(19.7 in)- Weight without load
5,300 kg
(11,684.5 lb)- Free lift
85 mm
(3.3 in)- Turning circle radius
Min.: 2,240 mm
(88.2 in)Max.: 2,445 mm
(96.3 in)- Travel speed
19 km/h, 20 km/h
(11.8 mph, 12.4 mph)- Lifting speed
410 mm/s, 440 mm/s, 470 mm/s, 520 mm/s
- Lowering speed
300 mm/s, 600 mm/s
- Maximum operating pressure
17.5 MPa
Description
Reinforced mast with wide view design improves efficiency and safety;
Engine is with large torque and capacity, which is powerful and can meet different operation demands;
Lifting system is equipped with up and down buffer cylinders, which reduce shock and vibration efficiently;
Hydraulic system is equipped with the throttling valve, which makes operation safe and reliable.
ADVANTAGE INTRODUCTION
• It can be equipped with Japanese engine, with strong power and low failure rate.
• Spacious driving space. The mast is designed with large channel steel, with firm structure and
strong bearing capacity. The front twin cylinder mast is optional for better visibility.
• Conical design is adopted for pipe joints to prevent oil leakage.
Catalogs
No catalogs are available for this product.
See all of Zoomlion Heavy Industry Science & Technology Co.,‘s catalogsOther Zoomlion Heavy Industry Science & Technology Co., products
FORKLIFT
