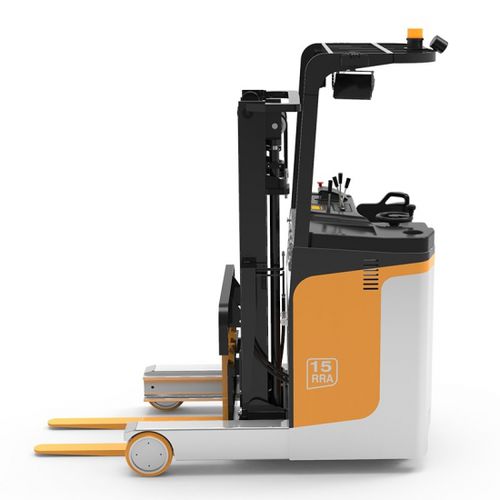

Electric reach truck FRA15

stand-onhandlingfor warehouse

1.5 Ton Standing Type Electric Reach Truck 1. AC system The electric reach truck comes equipped with a maintenance free AC drive motor which has no carbon brush, no contacts and large output torque. It delivers incredible power and gradeability performance. The rear axle drive adopted by this truck has the function of bearing, speed reducing and differential effect. 2. Battery maintenance and change The large capacity battery features double side removing: Front removing is used for daily maintenance such as system checks and fluid replacement. Side removing enables quick batter swaps to minimize downtime. There are optional batteries such as FAMM, GS, HOPPECKE, Trojan. 3. Wider area for the leg The area for leg is 472mm in length, so the operator can move flexibly. They will be comfortable without feeling cramped. 4. Comfortable backrest The position of the backrest can be vertically adjusted in order to provide a safe and comfortable driving environment. The whole truck can be equipped with soft cushions for waist, elbow and head. The fully surrounding soft cushion offer the driver a comfortable driving experience. 5. Design of low center of gravity The low center of gravity design ensures the stability of the truck so that it will not turn over even under high stress situations. 6. Lifting height limit The lifting height of this reach truck can be up to 7.2m. It is precisely controlled by numerical control. 7. Turning speed limiting device The precise high speed limiting turning control technology can prevent side overturning, thus protecting the goods from dropping. 8.This reach truck can freely lift the heavy goods to the height of 7200mm with ease.
