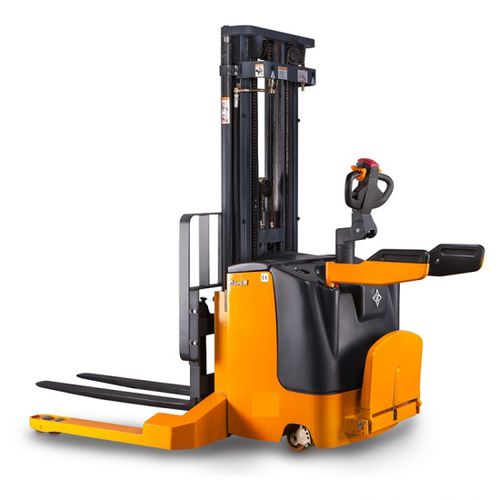

Electric stacker truck XEEK15

walk-behind24 Vtransport

Our XEK electric straddle stacker is especially used for stacking of medium and high intensity in warehouses, manufacturing industries, retail stores and that. Its loading capacity ranges from 1000kg to 2000kg.This kind of stacker can be used independently as well as together with a platform.But the platform is necessary for its long-distance transport. • Power supply : Electric • Operating type : Standing • Load center distance : C mm : 600 • Load distance : X mm : 280 • Wheelbase : Y mm : 1329 • Weight : Weight(without battery) : kg : 942 • Axle loading, loaded • drive end / load end : kg : 843/1799 • Axle loading,unloaded • drive end / load end : kg : 767/375 • Dimensions : Height with mast closed : h1 mm : table 1 • Free lifting height : h2 mm : table 1 • Lifting height : h3 mm : table 1 • Max height, max fork height : h4 mm : table 1 • Forks height, lowered : h5 mm : 35 • Height of handle in drive position (Max/Min) : h6 mm : 1396/1136 • Overall length : L1 mm : 2003 • Inside width at the end of leg : b2 mm : 1270 • Fork dimensions : s/e/l mm : 100/35/1070 • Min. ground clearance : m mm : 30 • Aisle width for pallets 800x1200 lengthways : Ast mm : 2587 • Turning radius : Wa mm : 1626 • Electric Motor : Drive motor rating : kw : AC 1.5 • Battery weight : kg : 200\205\295
