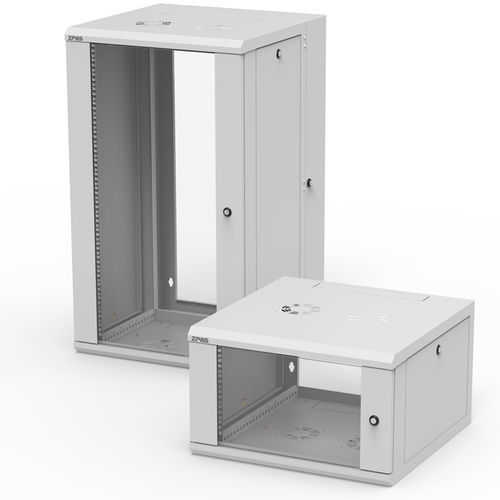

• Designed for indoor applications.
• Available in two depths (450 and 600 mm) and six usable heights (from 6 to 21 U).
• The cabinet 450 mm deep can be equipped with an additional body, fixed to its rear wall with two or three hinges and a lock.
This creates a double-section cabinet 600 mm deep.
• The design of the cabinet is based on a welded body, glazed front door and two removable side panels.
• The cabinet is equipped with two adjustable 19” mounting angles with depth regulation.
• Top and bottom plates have cable openings covered with knock-out blanking plates and venting grids with holes for fan assembling.
• Door and side panels can be installed without tools.
• It is possible to change door opening direction and opening of the additional rear body direction.
• Bodies, door and side panels are equipped with earthing pins.
• The cabinet is without a rear panel.
IP 20 in accordance with EN 60529 (if the cabinet is mounted on the solid flat wall).
60 kg for Z-CUBE 600 and Z-CUBE 450 single-section cabinets,
30 kg for Z-CUBE 450+150 double-section cabinet.
Steel sheet, clear mineral safety glass.
Body, side panels, side elements of glazed door – powder paint, light grey (RAL 7035) or black (RAL 9005). Mounting angles – Al-Zn coated.
body, glazed door with a lock, 2 side panels with one lock each, 2 mounting angles.
body, 2 or 3 hinges, 1 lock.
