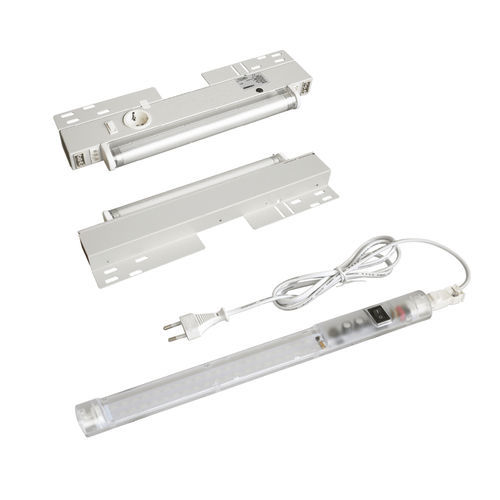

Electric light fitting fixed into the horizontal profile of the cabinet’s frame. Equipped with a Schuko power socket and a switch. Possibility of direct power supply or use of the connecting cable from an adjacent lighting fitting. Possibility of door switch control.
Electric light fitting - sheet steel powder painted in RAL 7035 colour Mounting bar - Al-Zn coated sheet steel
Kit contains: electric light fitting with a 14 W fluorescent lamp, connecting plug, mounting bar (only for the cabinets 600 mm wide), fixing accessories. Connecting cable, power supply cable and door switch set are to be ordered separately.
Electric light fitting with mounting brackest for attaching it to:
horizontal or vertical profiles of cabinet frame,
mounting bars type A or B,
or 19" transverse bar.
Total length of the electric light fitting with mounting brackets: 340 mm
Material
Body of the light fitting
- aluminium
Mounting brackets
- Al-Zn coated sheet steel
Scope of delivery
Set: electric light fitting with a LED lamp 230 V, 5 W and switch, two mounting brackets, 1.5 m power supply cable, fixing accessories.
The power supply cable equipped with a door switch is to be ordered separately.
