Compact heat device equipped with fan.
Power supply: 230 V AC 50-60 Hz
Heating force: 200/400 W
Fan capacity 10 m3 /h
Protection degree . IP 20
Dimensions . 71x70x95 mm
Features:
2 power ranges depending on how connect the power cord,
independent power supply circuit of the fan.
Scope of delivery:
heater,
DIN rail,
two holders,
screw clamps for connecting power cords.
Thermostatic regulator indicated for controlling fans, heaters, heat exchanger or for attaching signal generator at exceeding preset temperature limits.
Technical data
Sensor element: thermal bimetal
Temperature range: 0-60 °C, hysteresis ca. 7 °C
Contact types: snap action contact
Power carrying capacity: 6 A (1) 250 V AC
Radio frequency interference: N (according to VDE 0875)
Scope of delivery:
thermostat,
DIN rail,
cable,
two holders,
two clamps.

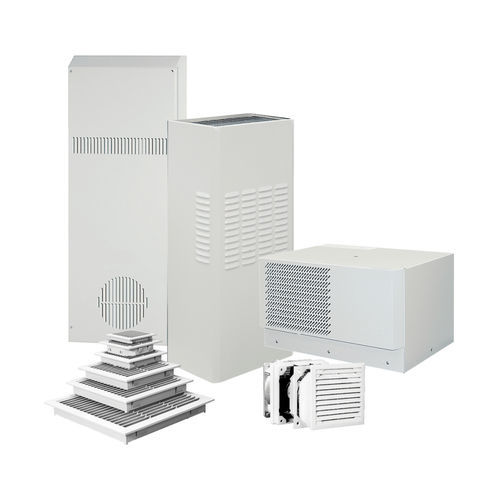

Intended for mounting in side panels and door of the cabinet.
Fastened with latches and screws.
Enclosure made of ABS material, light grey (RAL 7035).
Equipped with high quality filter inserts and gaskets.
Possibility of changing direction of air flow by turning the fan.
Type of fan supply
230 V AC (50/60 Hz)
On request: 115 V AC (50/60 Hz) or 24 V DC
Protection degree
IP 54 in accordance with EN 60529
Selection of filter fans and exhaust filters should be consulted with ZPAS customer service.
