Wall cabinet

steelsheet steelrail

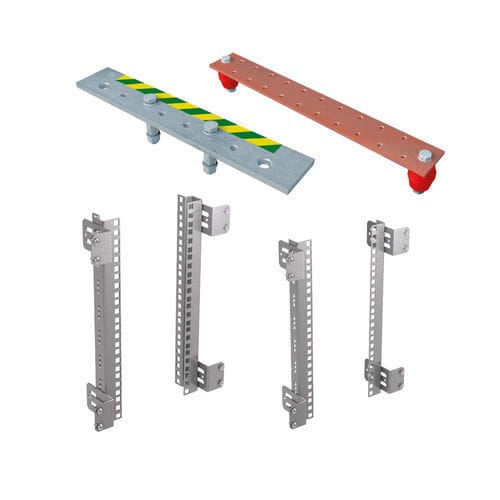

Fixed to the mounting plate by insulators (fixing points are made during assembly). Threaded holes M5 for fixing wires. Material Copper bar 30 x 4 mm. Scope of delivery Shielding bar with 2 insulators and screws for fixing on the mounting plate. Consists of an earthing bar and 2 earthing cables. Earthing bar Fixed to mounting plate by distance pins (standard mounting plate includes fixing points for earthing bar). Threaded holes M5 for fixing wires. Earthing cables Insulated copper wires for joining removable elements of the cabinet with earthing bar or directly with cabinet’s body. With contact eyes. Material Galvanised steel rail 30 x 4 x 170 mm Copper cables, full section 6 mm2 Scope of delivery Set: earthing bar 170 mm long with distance pins, washers and nuts for fixing to mounting plate, 2 grounding cables 300 mm long, fixing accessories. Wall brackets are fixed to openings in the rear side of the cabinet horizontally or vertically. Diameter of openings: 10 mm. Spacing between rear side of the cabinet and the wall: 20 mm. 1 set = 4 brackets per cabinet. Material Al-Zn coated sheet steel. Scope of delivery Set: 4 wall brackets with screws, nuts and washers for fixing to the rear side.
