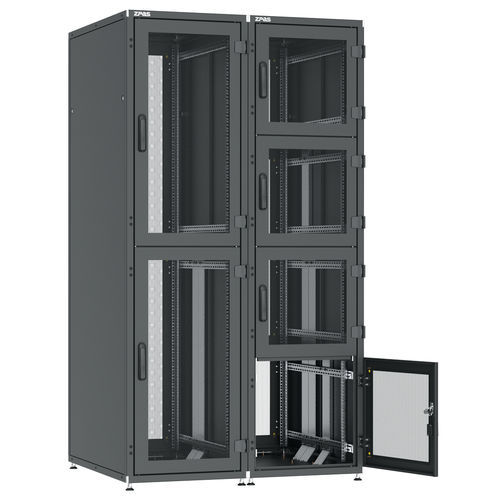

The interior of the cabinet is divided by horizontal partitions for two or four compartments. Each compartment is equipped with: an independent 19" rack, cable trays routed on both sides of the cabinet, a door.
A different key code for each compartment of the cabinet.
Cable entry from the bottom or from the top.
Cable openings in the top and bottom plates with knock-out blanking plates.
U-marking on the mounting profiles.
Maximum opening angle for front and rear door – 270°.
Possibility to change door opening’s direction.
Possibility to put the cabinet directly on the floor (no protruding elements under the cabinet).
Adaptation for baying the cabinets in row and Data Box creation (cold/hot aisle).
Bolted frame (bottom plate, top plate, four posts).
One or three horizontal partitions (depending on the cabinet’s configuration).
Perforated front and rear doors (80% perforation clearance) for each compartment of the cabinet.
Side panels or partitions (depending on the cabinet’s configuration).
Two pairs of 19" mounting profiles type STANDARD for each compartment of the cabinet.
Cable channels (depending on the cabinet’s configuration).
Earthing bar.
Earthing cables for doors and side panels.
Four levelling feet.
