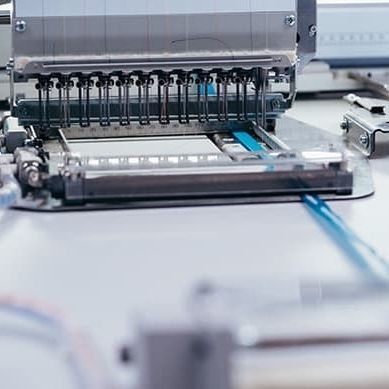

Roller feeder Roll2Basket

We developed our Belt Tape Device for you: Roll2Basket allows embroidery on belts and tapes from 10 mm to 150 mm. Depending on your wishes, you can execute the embroidery in one or more colours. Beside pure embroidery on those products, the device also enables you to fix cords or wires by using the EP1.2 – in this case the embroidery field becomes smaller. You can retrofit all embroidery machines of the SPRINT and RACER series, which have the options tubular and border frame, with the Roll2Basket system. It can be operated on several heads at the same time. The device is fixed on the tubular arms. At the front of the machine, the pull through unit is located on the table plate. The device requires compressed air and has to be connected to a compressor. Optical Sensor The optional optical sensor for the Roll2Basket detects specific markings on the carrier tape. Thus, the passage unit and the clamping frame are controlled so that an accurate positioning of the embroidery area in the embroidery field depth (Y-axis) takes place. Possible applications arise e.g. for tapes that specify a defined embroidery field or embroidery design through textile printing or interweaving and thus need to be precisely embroidered. Automatic Roll-up Unit In the basic version of the Roll2Basket, the embroidered strip material is collected in a collection container (Basket). The new optional automatic reel unit supports industrial processing, where roll goods are usually required. Rolls of up to 400 mm in diameter offer plenty of space for the finished embroidered ribbons, even with a maximum material thickness of 5 mm.
