Position measuring system ZED82B

lengthtemperatureinductive

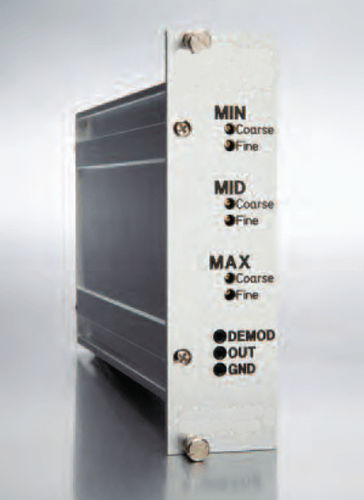

ZED82B series of high-precision displacement measuring instrument chassis system use modular rack mode to provide personalized building block measurement solutions. ZED82B Measuring Module The ZED82B highprecision displacement measuring system is packaged in a modularized rack format for mutlichannel displacement, run-out, and position measurements. It is ideal for industrial, laboratory, and production test applications. The 3U-by-7T Eurocard measuring module is the fundamental component of this non-contact measuring system, along with the sensors. This module — which conditions the sensor signal — contains the inductive bridge and signal conditioning circuits that produce the measurement output, a linear voltage proportional to the physical displacement of the target relative to the sensor. ZED82B series has 27 kinds of sensors to choose from. There are two types of multi-channel 19-inch chassis:3U / 94HP (maximum chassis); U / 42HP (half chassis). MAIN FEATURES Modularized rack format Standard 3U by 7T Eurocard modules Resolution to 10 microinches or better Multiple channels, rack mounted or bench-top enclosures 21 standard temperature sensors and 10 moderate temperature sensors. options Many options are available to customize a standard system to meet the exact needs of the application. The most popular are:Sensor Cables and Special Calibrations. Sensor Cables Sensor cable extension Most sensors can handle longer cable lengths, although increasing the cable length can and will affect some performance specifications. Shorter than standard cable lengths are also available. Call an apps engineer to discuss your particular requirements.
